S6T Pump Hoist

S6T Pump Hoist

S6T Pump Hoist Options

Click below to view options.

Product Gallery


Standard Features:

  • Front stabilizers
  • Rear extending H-style (street side) outrigger and down only (curb side) outrigger
  • Cable: 100' of 1/2" cable
  • 4 stabilizer pads for outriggers
  • Headache rack
  • Tailgate
  • Bumper with hitch plate and or receiver

S6T Pump Hoist

S6T Pump Hoist

Description:

The S6T pump hoist is one of our most versatile pump hoist with 360* continuous rotation.  42 ft. mast height with 10 ft. retraction range within the stinger.

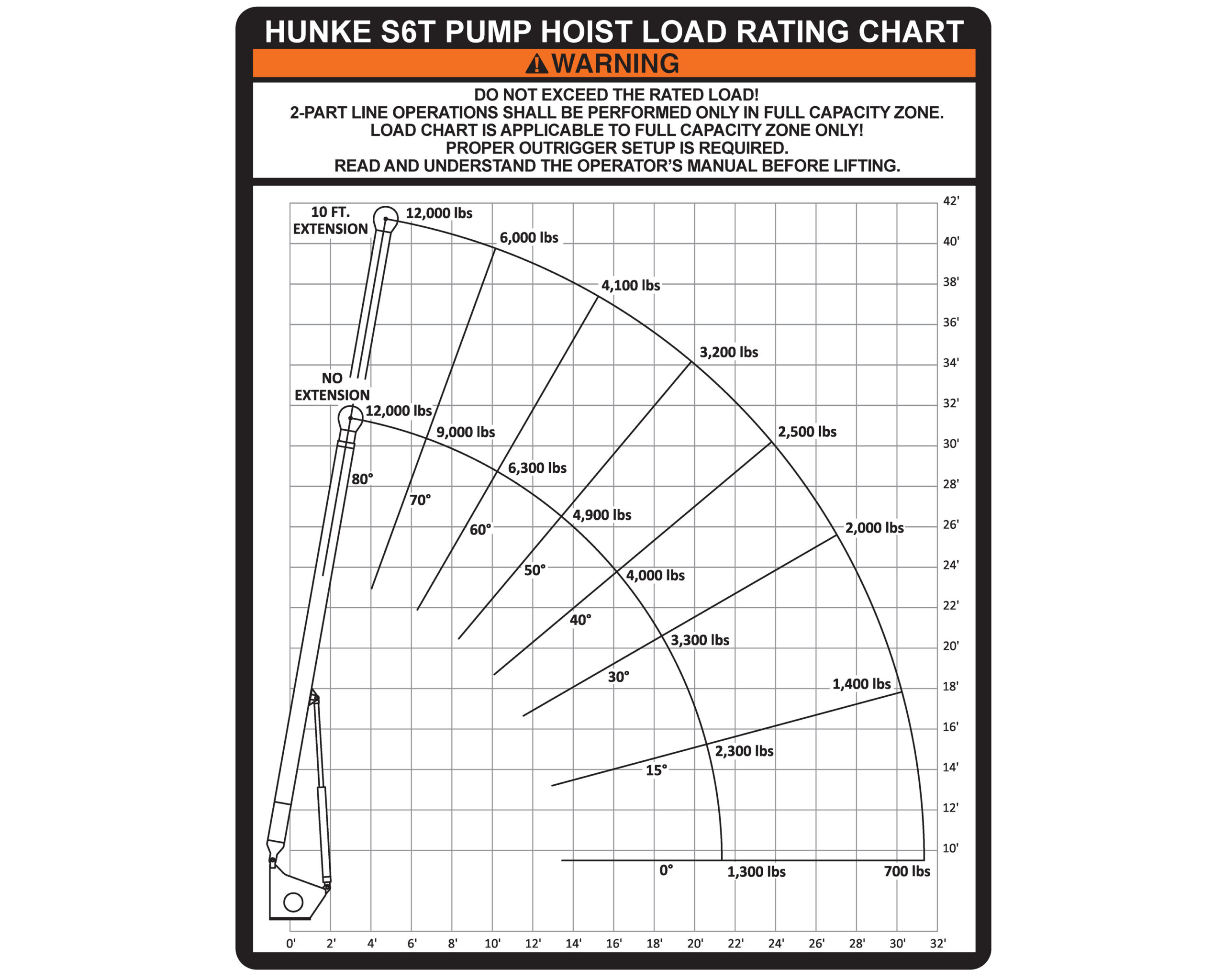

6,000 lb. single-line lift capacity and 12,000 lb. lift capacity on a 2-part line.  Single line speed is 120' per minute.

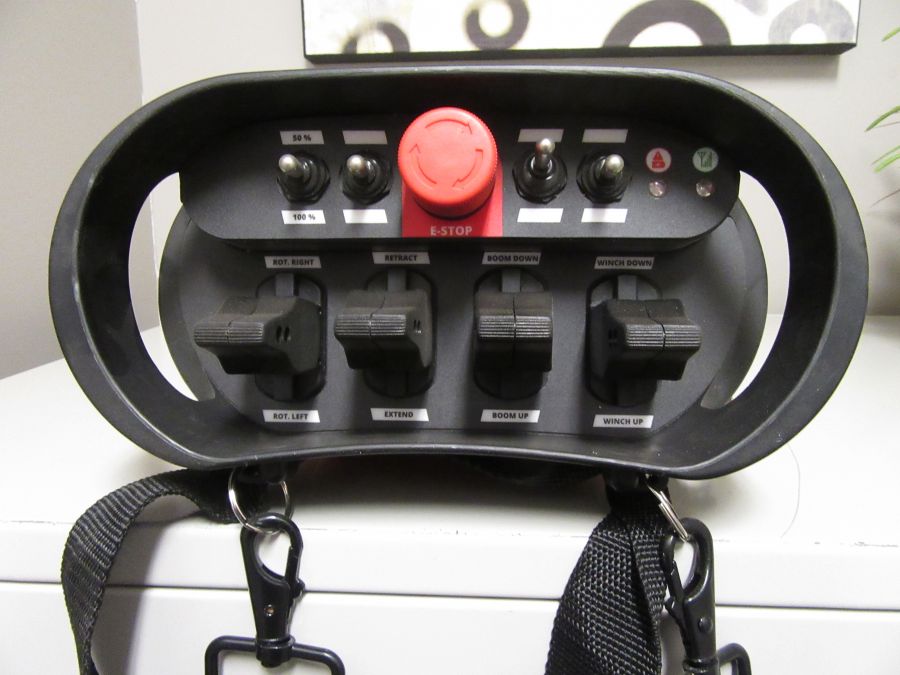

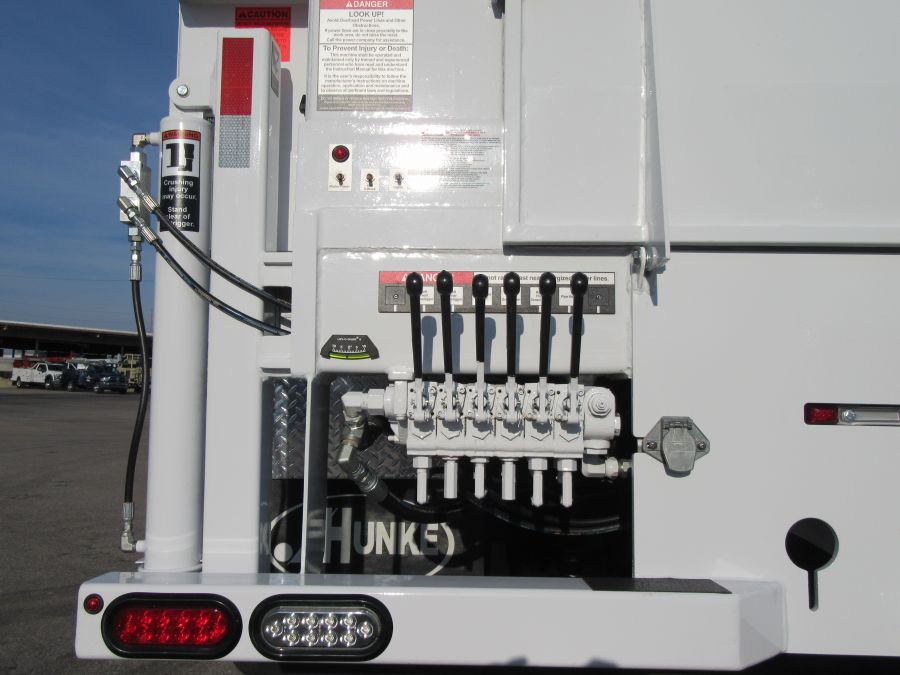

Wireless radio remote controls the winch, boom and turn table.  Secondary controls are mounting on the rear of the turntable.

Hydraulic powered tilting enclosed pipe rack (curb side) allows an open cargo area between the toolbox compartments.

Anti 2-block and anti-overload system are some of the other standard features on the S6T pump hoist.
