Standard Features:

  • Mast: 36 ft. high telescoping mast with 10 ft. maximum layback
  • Capacity: 7,000 lbs. single line, 21,000 lbs. with 3 part line
  • Mainline speed: 120 feet per minute
  • Mainline cable: 5/8" X 180'
  • The mainline spool is driven by a heavy duty pinion gear with the pinion shaft direct coupled to the hydraulic motor.  Braking is accomplished with a Hunke automatic fail safe brake.
  • The tailout winch is worm gearbox driven with a 2,000 lb. lifting capacity at 70 feet per minute.  Tailout cable: 3/8" x 125 ft.
  • Line Block: Blocks for reeving a 2 part or 3 part line
  • Hooks: 7 ton and 15 ton safety hooks
  • PTO for standard transmission (PTO is available for an automatic at additional cost)
  • Hydraulic pump: 2 stage gear pump
  • Hydraulic bypass valves are incorporated to protect from overloading
  • Rear hydraulic outriggers with holding valves
  • Holding valve on mast cylinders
  • Gray paint

8T Pump Hoist

8T Pump Hoist

Description:

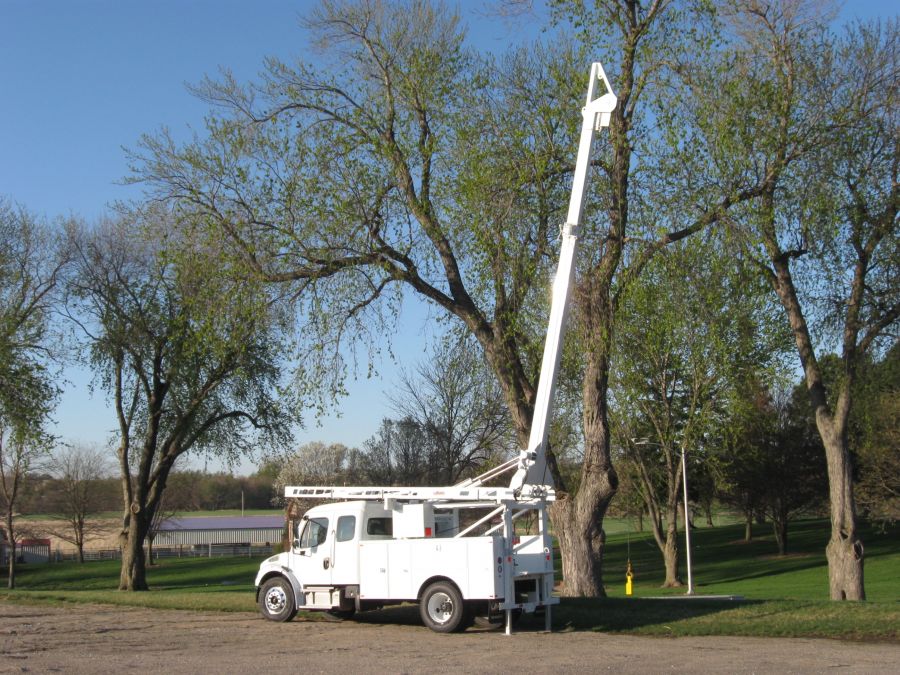

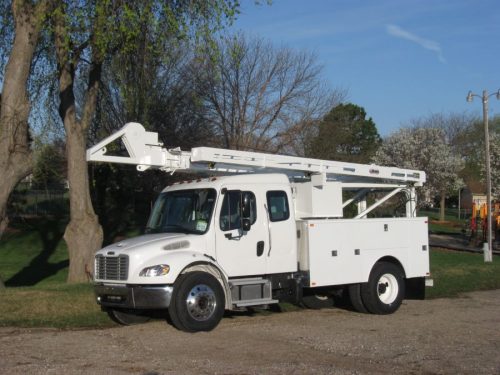

The 8T pump hoist with 21,000 lbs. capacity and a 36 ft. high telescoping mast is designed to mount on a 2 ton or larger truck.  Fast and easy setup by means of a self supporting mast with two 3 1/2" bore hydraulic cylinders.  A guy cable is not needed in most situations.  Designed to allow for easy access to hard-to-get-to pumps.  Total pump hoist weight is approximately 5,300 lbs.  A deck, headache rack and toolboxes add approximately 3,000 lbs.

The 8T can be mounted on a 54" x 11' utility body or on a deck.

The open frame design allows full use of deck area for cargo and work tools.

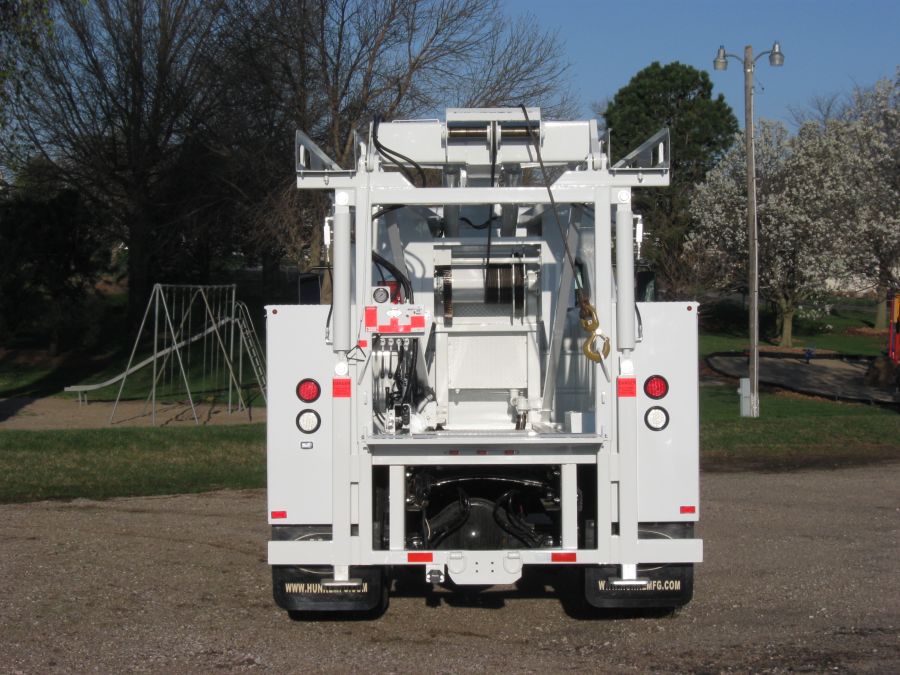

The controls are conveniently located at the left rear corner of the rig and are accessible from ground level.

The optional sandline winch is operated power-up and power-down.  It has a bare spool lifting capacity of 2,500 lbs. with a maximum line speed of 325 ft per minute.  Cable capacity is 800' of 1/2" cable, 1,100' of 7/16" cable or 1,500' of 3/8" cable.
